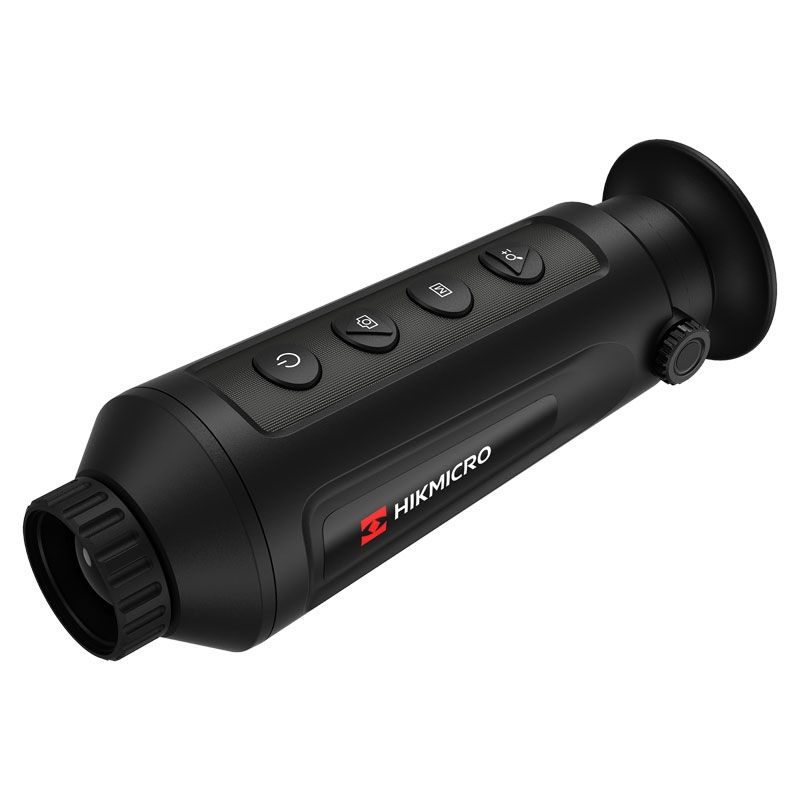

Hikmicro Lynx Pro LH19 19mm (384x288) Smart Thermal Monocular

The Hikmicro Lynx Pro LH19 19mm Smart Thermal Monocular has many of the features that you'll find on the more premium models but at a more affordable price.

The Lynx Pro LH19 is built on the same compact chassis as the popular, pocket-sized 15mm model but with an important additional feature - a focus ring around the objective lens. This allows you to precisely adjust the image to optimise your view over a wide range of distances.

The Lynx Pro LH19 is the first Thermal Monocular from HikMicro to use a 384x288px 12µm sensor. This change in pixel pitch boosts your magnification up to 1.8x which gives you to detection distance of 897m (human size target) and this also helps reduce the overall cost of the product.

The Hikmicro Lynx Pro LH19 19mm Smart Thermal Monocular has also shares the large screen from the 35mm models, which produce a clear and easy-to-use view of your surroundings.

You will find all of the usual HikMicro features; 4 colour profiles, digital magnification up to 8x and T-Vision App compatibility; Connect, Stream and Record to your smart phone.

Features

• 35mK NETD Rating - one of the most sensitive sensors available on the market, detecting even the smallest temperature differences!
• Objective Focus Ring - precisely adjust the image to optimise your view over a wide range of distances.
• 384x288px 12µm sensor - this change in pixel pitch boosts your magnification up to 1.8x allowing a detection distance of 897m (Human size target).
• 1280 x 960px LCOS Screen - featuring the same large screen from the 35mm models, producing a clear and easy-to-use view of your surroundings.
• Hot Track - activate Hot Tracking and your Lynx Pro will highlight the hottest spot detected in the current frame with a green crosshair.
• 4 Colour Profiles
• 8x Digital Magnification
• T-Vision App compatibility - Connect, Stream and Record to your Smart Phone.

Specifications

MAIN

• Sensor: 384×288px @ 12µm
• Objective Lens: 19mm
• Detection Range (Human 1.8 x 0.5m): 897m


SENSOR

• Type: Vanadium Oxide Uncooled Focal Plane Arrays
• Resolution, pixels: 384 × 288 px
• Pixel pitch, µm: 12µm
• Frame rate, Hz: 50 Hz
• NETD: <35mK

OPTICS

• Objective lens: F1.0
• Magnification (Optical): 1.86x
• Magnification (Digital): 1x, 2x, 4x, 8x
• Field of view : 13.8° × 10.4° (H × V)

DISPLAY

• Type: 10 mm LCOS
• Resolution, Pixels: 1280 x 960
• Colour Palettes: Black Hot, White Hot, Red Hot, Fusion

Video Recorder

• Build in memory - 8gb

Additional features

• Hot Tracking
• WiFI hot spot
• T-Vision App support


Environmental

• Degree of protection, IP code: IP67
• Dust protection: Protected against dust ingress
• Water protection: Protected against temporary submersion in water
• Operating temperature range: -20 °C to 55 °C


WEIGHT & SIZE

• Dimensions, mm: 171 mm × 61 mm × 57 mm
• Weight, kg: 0.31 kg


POWER SUPPLY

• Operating time on battery (WiFi & Hot tracking disabled): 7.5 hours continuous running
• Charging interface: USB-C
• Battery capacity after 1000 cycles: 80%


Warranty Period

• Main Unit: 3 Years
• Battery: 2 Years
