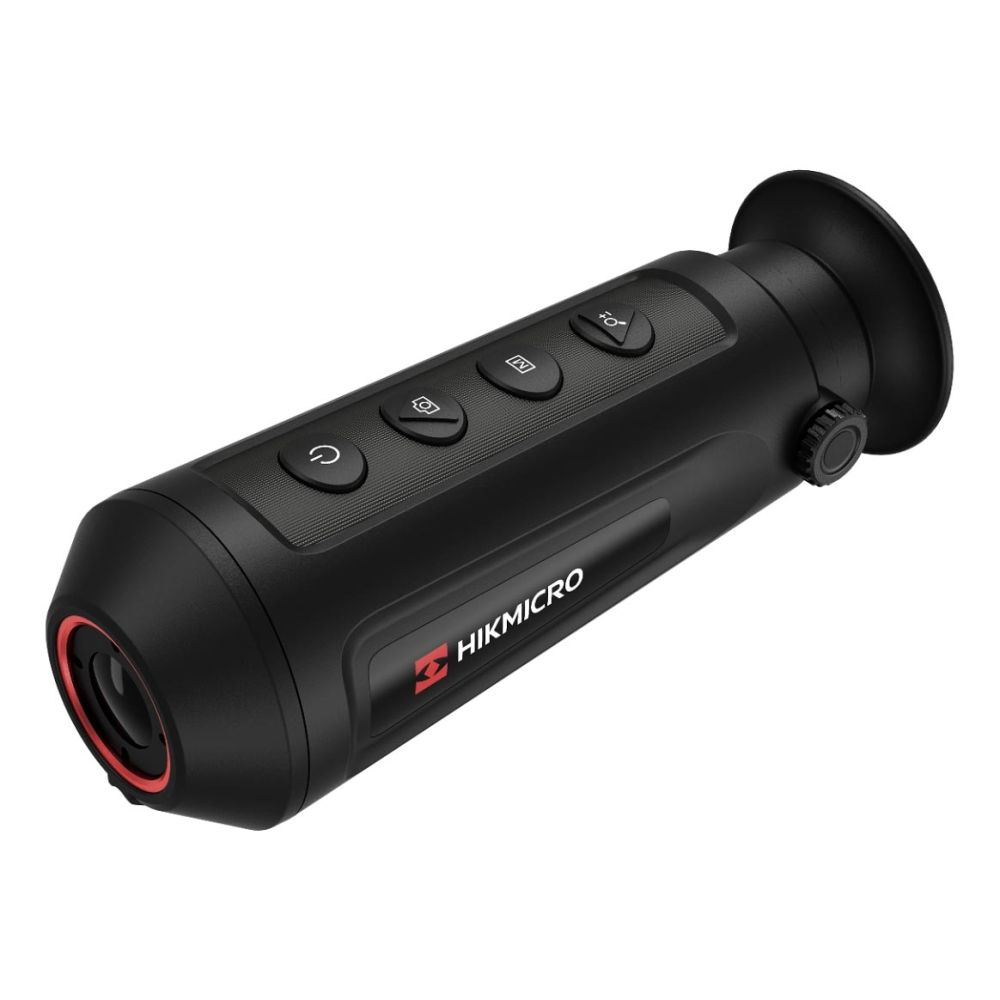

Hikmicro Lynx Pro LH15 15mm (384x288) Smart Thermal Monocular
The Hikmicro Lynx Pro LH15 15mm Smart Thermal Monocular:
- Sensor: 384×288px @ 12µm
- Objective Lens (Focal Length): 15 mm
- Detection Range (Human 1.8m x 0.5m): 708m
- 1280x960 Resolution Display
- IP67 Rating for dust and water protection
£945.00
Ref
hm-lynx-pro-lh15
The Hikmicro Lynx Pro LH15 15mm (384x288) Smart Thermal Monocular is the best selling entry level Thermal Monocular in the HikMicro range.
The Lynx Pro 15mm has the same large 10mm display that is featured on the premium Lynx Pro 19mm and 25mm models. This large display makes it nice and easy to view your surrondings.
The Lynx Pro LH15 also utilises the latest 384x288px, 12µm, sub-35mK, NETD Thermal Sensor from HikMicro. This sensor is a high quality and very accurate sensor that delivers a very detailed image and the 12µm boosts the optical magnification up to 1.5x. The increased magnification is helpful for spotting small heat sources and adds extra detail while retaining the wide Field-of-View (which is ideal for quickly scanning a wide area).
The Lynx Pro LH15 features WiFi capabilities which alow you to connect to the T-Vision App where you can stream, record and control your monocular. It has 4 colour palettes: Black Hot, White Hot, Red Hot and Fusion. The LH15 is IP67 rated for protection againste dust and water. It has a 3 year Warranty.
Specifications
MAIN
- Sensor: 384×288px @ 12µm
- Objective Lens (Focal Length): 15 mm
- Detection Range (Human 1.8m x 0.5m): 708m
SENSOR
- Type: VOx Uncooled Focal
- Plane: Arrays
- Resolution, pixels: 384 × 288 px
- Pixel pitch, um: 12µm
- Frame rate, Hz: 50 Hz
- NETD: <35mK
OPTICS
- Objective lens: F1.0
- Magnification (optical): 1.47x
- Magnification (Digital): 1x, 2x, 4x, 8x
- Field of view: 17.5° × 13.1° (H × V)
DISPLAY
- Type: 10 mm LCOS
- Resolution, Pixels: 1280 x 960
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND
- Build in memory - 8gb
ADDITIONAL FEATURES
- Hot Tracking
- WiFI hot spot
- T-Vision App support
ENVIRONMENTAL
- Degree of protection, IP code IP67
- Dust protection Protected against dust ingress
- Water protection Protected against temporary submersion in water
- Operating temperature range -20 °C to 55 °C
WEIGHT & SIZE
- Dimensions, mm: 158 mm x 61 mm x 57 mm
- Weight, Kg: 0.29 kg
POWER SUPPLY
- Operating time on battery (WIFI & Hot tracking disabled): 7.5 hours continuous running
- Charging interface: USB-C
- Battery capacity after 1000 cycles: 80%
Warranty
- Main Unit: 3 Years
- Battery: 2 Years
HikMicro has a Service Centre located in London for UK repairs.
