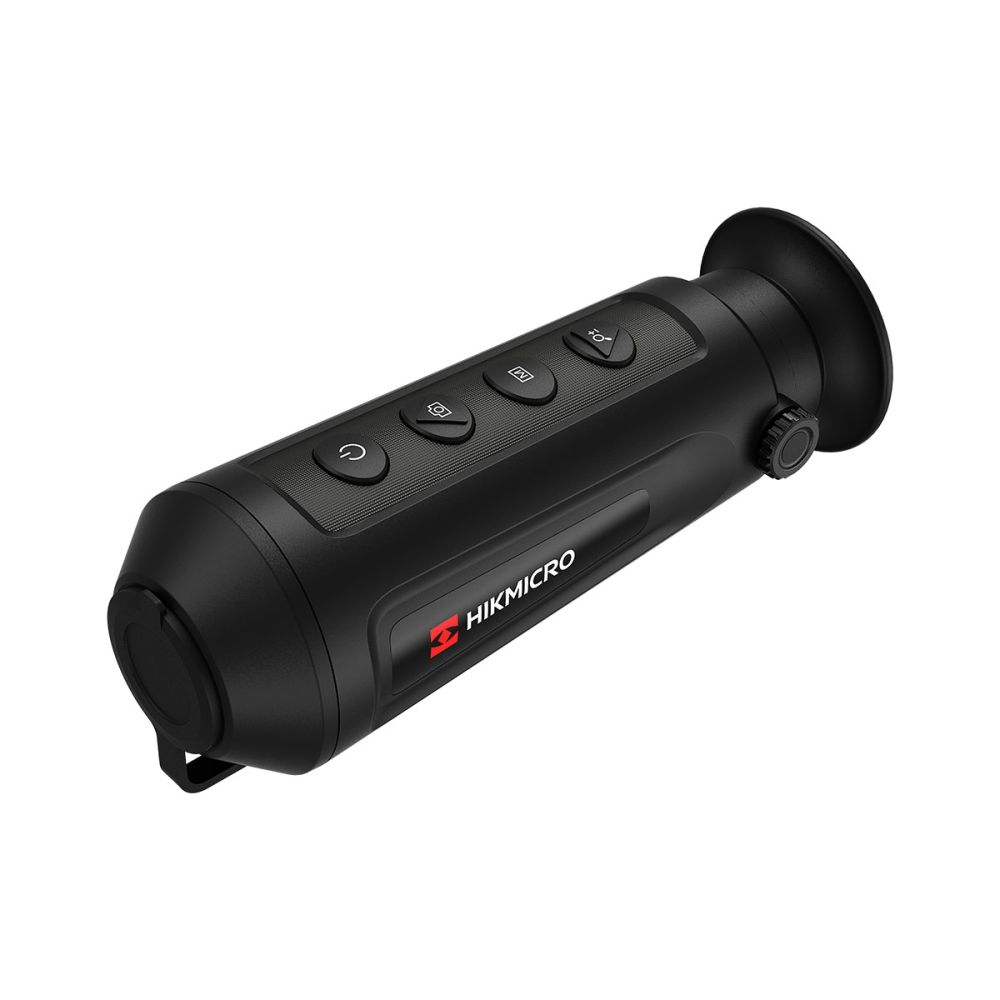

Hikmicro Lynx Pro LE10 10mm (256x192) Smart Thermal Monocular
The Hikmicro Lynx Pro LE10 10mm Smart Thermal Monocular:
- Sensor: 256x192px @ 12µm
- Objective Lens (Focal Length): 10 mm
- Detection Range (Human 1.8m x 0.5m): 458 m
- 720×540 Resolution Display
- IP67 Rating for dust and water protection
£575.00
Ref
hm-lynx-pro-le10
The Hikmicro Lynx Pro LE10 10mm Smart Thermal Monocular delivers high quality thermal performance at an entry-level price. The advanced performance is due to the 256 x 192 12um sensor, which produces a higher level of image detailing - this is especially useful for locating and identifying small animals such as rabbits, squirrels and birds. The sensor also has a sub 35 NETD performance which makes it ideal for detecting small temperature changes under challenging conditions.
The Hikmicro Lynx Pro LE10 10mm Smart Thermal Monocular has the same software that the more expensive models have and it includes 4 colour palettes: white hot, black hot, red hot and fusion. The Lynx Pro LE10 also features built in memory of 8gb which allows you to record video and images, plus connect to the T-Vision app to record/share your shooting experience.
The fixed-focus optical system and wide field of view make it easy to quickly scan large areas and identify your targets.
Specifications
MAIN
- Sensor: 256x192px @ 12µm
- Objective Lens (Focal Length): 10 mm
- Detection Range (Human 1.8m x 0.5m): 458 m
SENSOR
- Type: VOx Uncooled Focal Plane Arrays
- Resolution, pixels: 256 x 192 PX
- Pixel pitch, um: 12µm
- Frame rate, Hz: 25 Hz
- NETD: <35mK
OPTICS
- Objective lens: F1.0
- Magnification (optical): 1x
- Magnification (Digital): 1x, 2x, 4x, 8x
- Field of view: 18.00° × 13.55° (H × V)°
DISPLAY
- Type: 5.08mm, LCOS
- Resolution, Pixels: 720 × 540
- Colour Palettes: Black Hot, White Hot, Red Hot, Fusion
VIDEO & SOUND
- Built in memory - 8gb
ADDITIONAL FEATURES
- Hot Tracking
- WiFI hot spot
- T-Vision App support
ENVIRONMENTAL
- Degree of protection, IP code IP67
- Dust protection Protected against dust ingress
- Water protection Protected against temporary submersion in water
- Operating temperature range -20 °C to 55 °C
WEIGHT & SIZE
- Dimensions, mm: 158 mm x 61 mm x 57 mm
- Weight, Kg: 0.26 kg
POWER SUPPLY
- Operating time on battery (WIFI & Hot tracking disabled): 8 Hours continuous running
- Charging interface: USB-C
- Battery capacity after 1000 cycles: 80%
Warranty
- Main Unit: 3 Years
- Battery: 2 Years
HikMicro has a Service Centre located in London for UK repairs.
