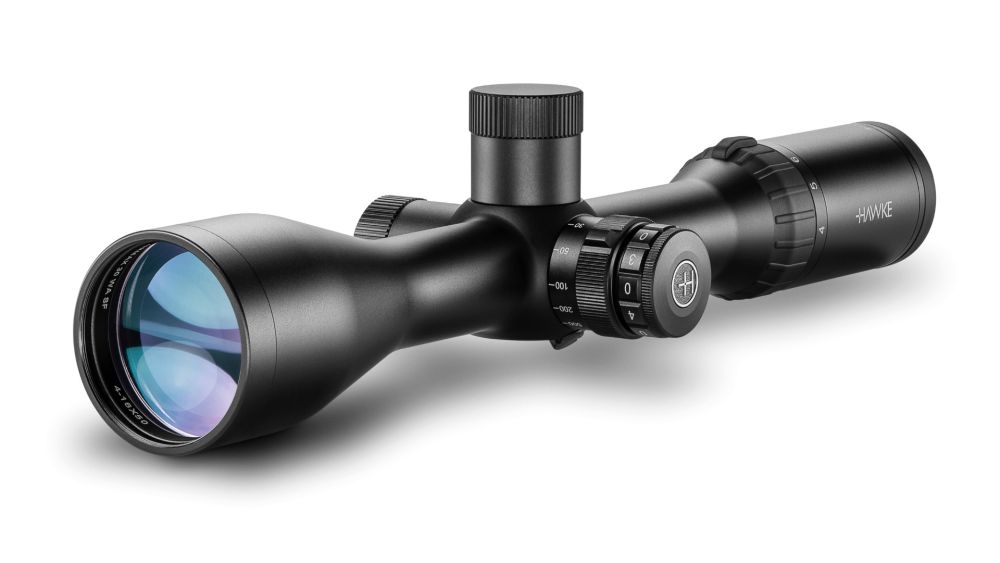

Hawke Airmax 30 WA SF 4-16x50 AMX IR

Airmax scopes are available in either 30mm or 1 inch chassis designs. The Airmax 30 offers the illuminated AMX reticle, designed with serious airgun shooters in mind. For complete control of the AMX I R reticle brightness, a steeples rheostat operates with infinite adjustment from low to ultra-bright illumination. Additionally, the Airmax 30 uses a side focus parallax adjustment that can focus down to 10 yards. Lockable turrets allow for easy adjustments without the need to remove a turret cap. The side focus parallax wheel is a patented design which allows the large side wheel to attach directly onto the central spine of the side wheel for accurate focus and parallax free shooting.
A more traditional scope design, the Airmax is a great option for the serious airgun hunter that wants to keep the weight of their rifle down.

Both the AMX and AMX IR glass etched reticles are based on the spacing of a 10x Mil Dot. The AMX offers multiple aim points, useful when shooting air guns with loopy trajectories.

Half Mil Dot spacing on the lower post provides increased aim points for long shots.

The horizontal bars are calculated at 0.5, 1.5, 2.5, 3.5 and 4.5 mil spacing. Hollow posts are segmented into mil spacing and can be used for bracketing.

• 16 layer fully multi-coated optics for exceptional clarity
• Side focus control for parallax adjustment to infinity
• 30mm mono-tube chassis for superior strength
• Glass etched reticle with red illumination
• Stepless rheostat offers total brightness control
• 1⁄4 MOA exposed, locking and resettable turrets
• Fast focus eyebell and high torque zoom ring

Chassis:30mm Mono-tube
Optical System:4-16×
Objective:50mm
Reticle:AMX IR
Illumination:Red - Stepless
Focus/Parallax:Side Focus - 9m / 10yds to Infinity
Field of View: m @100m / ft @100yds 7.7 - 2.2m / 23 - 6.5ft
Eye relief:102mm / 4″
Length:358mm / 14.1″
Weight:780g / 27.5oz

Waterproof, Shockproof, Nitrogen purged.
All calibre rated.
